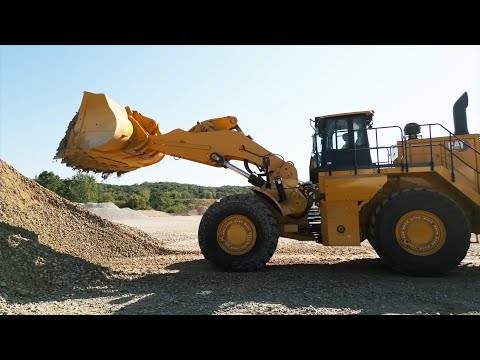

Engine Power - ISO 14396:2002580hp
Engine ModelCat® C18
Rated Speed1,700 rpm
Peak Power Speed1,500 rpm
Gross Power - SAE J1995:2014588hp
Net Power - SAE J1349:2011538hp
Bore5.7in
Stroke7.2in
Displacement1105in³
Peak Torque - 1,200 rpm2230lbf·ft
Torque Rise58%
Note (1)Two engine emissions options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (2)Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
Operating Weight116362lb
Bucket Capacity Range4.7-13 m3 (6.2-17 yd3)
Rated Payload - Quarry Face12.5t
Rated Payload - Loose Material16t
Transmission TypeCat switched reluctance electric drive
Forward 1 (virtual)4.3mile/h
Forward 2 (virtual)7mile/h
Forward 3 (virtual)13.8mile/h
Forward 4 (virtual)20mile/h
Reverse 1 (virtual)4.3mile/h
Reverse 2 (virtual)7mile/h
Reverse 3 (virtual)17.5mile/h
Lift/Tilt System - CircuitEH-Positive Flow Control, Flow Sharing
Lift/Tilt System - PumpVariable displacement piston
Maximum Flow at 1,400-1,600 rpm153gal/min
Relief Valve Setting - Lift/Tilt4757psi
Lift Cylinder - Bore8.7in
Lift Cylinder - Stroke41.3in
Tilt Cylinder - Bore8.7in
Tilt Cylinder - Stroke27in
Rack Back4.5s
Raise8s
Dump2.2s
Lower Float Down3.5s
Total Hydraulic Cycle Time18.2s
Steering System - CircuitPilot, load sensing
Steering System - PumpPiston, variable displacement
Maximum Flow at 1,400-1,600 rpm71.3gal/min
Steering Cut Off Pressure4351psi
Total Steering Angle86°
Steering Cycle Times - High Idle3.4s
Steering Cycle Times - Low Idle5.6s
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system con
FrontFixed
RearTrunnion
Oscillation Angle13°
BrakesISO 3450:2011
ROPS/FOPSROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Operator Sound Pressure Level (ISO 6396:2008)72dB(A)
Machine Sound Power Level (ISO 6395:2008)109dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*72dB(A)
Machine Sound Power Level (ISO 6395:2008)**109dB(A)
Note (1)* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”
Note (2)** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701
Note (3)The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4)The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5)Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Operator Sound Pressure Level (ISO 6396:2008)72dB(A)
Machine Sound Power Level (ISO 6395:2008)110dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*72dB(A)
Machine Sound Power Level (ISO 6395:2008)**110dB(A)
Note (1)* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”
Note (2)** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701
Note (3)The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4)The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5)Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Fuel Tank147gal (US)
Cooling System - Jacket Water30gal (US)
Cooling Systems - Power Train8gal (US)
Engine Crankcase16gal (US)
Diesel Exhaust Fluid Tank8.7gal (US)
Transmission16gal (US)
Differential - Final Drives - Front49gal (US)
Differential - Final Drives - Rear49gal (US)
Hydraulic System - Implement/Steering126gal (US)
NoteCat U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: • 20%
Ground to Top of ROPS13.8ft
Ground to Top of Exhaust Stacks14.8ft
Ground to Top of Hood10.9ft
Ground to Bumper Clearance3.1ft
Rear Axle - Centerline to Bumper10.5ft
Front Axle Centerline to Bucket Tip14ft
Wheel Base14.9ft
Maximum Overall Length39.3ft
Ground to Lower Hitch Clearance1.9ft
Ground to Center of Axles3.2ft
Clearance at Maximum Lift11.9ft
B-Pin Height - Maximum Lift18ft
Maximum Overall Height - Bucket Raised24.5ft
Reach - Maximum Lift6.5ft
NoteSpecifications are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height.
Ground to Top of ROPS13.8ft
Ground to Top of Exhaust Stacks14.8ft
Ground to Top of Hood10.9ft
Ground to Bumper Clearance3.1ft
Rear Axle - Centerline to Bumper10.5ft
Front Axle Centerline to Bucket Tip15.3ft
Wheel Base14.9ft
Maximum Overall Length40.7ft
Ground to Lower Hitch Clearance1.9ft
Ground to Center of Axles3.2ft
Clearance at Maximum Lift13.3ft
B-Pin Height - Maximum Lift19.3ft
Maximum Overall Height - Bucket Raised25.8ft
Reach - Maximum Lift6.8ft
NoteSpecifications are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height.
Ground to Top of ROPS13.8ft
Ground to Top of Exhaust Stacks13.8ft
Ground to Top of Hood10.9ft
Ground to Bumper Clearance3.1ft
Rear Axle - Centerline to Bumper10.5ft
Front Axle Centerline to Fork Tip16.5ft
Wheel Base14.9ft
Maximum Overall Length41.9ft
Ground to Lower Hitch Clearance1.9ft
Ground to Center of Front Axle3.2ft
Fork Height with Level Arms8.1ft
Fork Top Clamp Opening13.1ft
Fork Height at Maximum Lift17.2ft
Hinge Pin Height at Maximum Lift16.1ft
Dump Angle at Maximum Lift-39.4°
