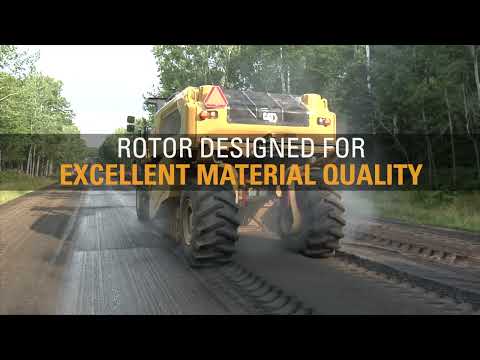

RM600 Road Reclaimer

Maximum Operating Weight78484lb

Note (1)Maximum weight is approximate and includes base machine, all options, coolant, lubricants, rotor, full fuel tank, full water tank, full DEF tank and 75 kg (165 lb) operator.

Cutting/Mixing Width8ft

Maximum Cutting/Mixing Depth20in

Rotor OptionsSystem K

Rotor DriveBelt

Operating Speed213ft/min

Maximum Travel Speed7.5mile/h

Gross Power637hp

Engine Power629hp

Engine ModelCat C18

EmissionsU.S. EPA Tier 4 Final, EU Stage V, Korea Stage V

Build Number01A

Recyclability98%

Length28.61ft

Width9.8ft

Maximum Height11.5ft

Wheel Base23.13ft

Ground Clearance19.9in

Fuel Tank Capacity325gal (US)

DEF Tank12.4gal (US)

Cooling Systems26.1gal (US)

Engine Oil18gal (US)

Hydraulic Tank31.7gal (US)

Washdown Water Tank120gal (US)

Estándar

Adjustable armrests

Air-ride, heated suspension seat

180° rotating operating station

Audio-ready with speakers

Full-width sliding cab with heat and air conditioning

Push button start

High-visibility retractable seat belt

On-screen steering guides

Color touch screen displays (2)

12-Volt and USB power ports

Estándar

Dual element air cleaner with pre-cleaner

Cat^® Extended Life Coolant (ELC) with protection to -37° C (-35° F)

Auto-reversing, on-demand cooling fan

Engine Idle Speed Management

Automatic Load Control

Four steering modes

All-time All-wheel drive

Electronic differential

Slope Control

Opcional

Cat Bio HYDO^™ Advanced biodegradable hydraulic oil

CE certificate

Estándar

150-Amp alternator

24-Volt charging system

Automotive-type fuse system

Remote start/charge receptacle

1000 CCA maintenance-free batteries (4)

Estándar

Electronic driveline protection

Automatic depth control

Hydraulically-controlled dry clutch

2-speed planetary gearbox

Six rotor speeds

Variable volume mixing chamber

System K rotor

Toolholder protection - Wedge

Opcional

Toolholder - 20 mm shank bits

Toolholder - 22 mm shank bits

Estándar

Cat VisionLink^™

Remote Flash

Remote Troubleshoot

Remote access drains

Scheduled Oil Sampling (S·O·S℠) ports

Fluid level sight gauges

Service light receptacles

Air compressor

Lockable storage

Bit bucket tray

Opcional

Fast fill fuel system

Hydraulically-powered rotor turning with pendant

High pressure washdown system

Magnetic service light

Pneumatic bit removal tools

Estándar

Back-up alarm

Ground level emergency shutdown switches (4)

Horn (front and rear)

FOPS cab

ROPS

Platform handrails and guardrails

Folding rear view mirrors

Illuminated access ladder

Operator ID profiles

LED working lights

Front and rear facing cameras

Front and rear rotor chamber door cameras

Opcional

Bluetooth key fob

LED roading lights

Folding LED safety beacon

Folding side view cameras (2)

Opcional

Water spray system

Emulsion spray system

Push bar
