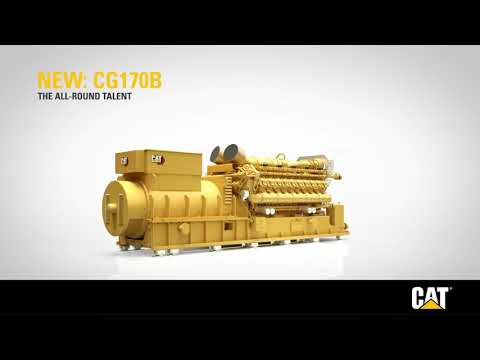

CG170B-12 Gas Generator Set

Continuous Rating1380 ekW @1.0pf

Fuel TypeNatural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)

Maximum Electrical Efficiency45.00%

Maximum Standby Rating1380

Frequency50 Hz

RPM1500 rpm

Engine ModelCG170B-12

AspirationTA

Bore6.7in

Stroke7.7in

Length200in

Width67in

Height86in

Dry Weight - Genset28440lb

Standard

One-element single-stage air cleaner with enclosure and sevice indicator

Turbocharger with a water-cooled bearing case for all cylinder

Standard

TPEM (Total Plant & Energy Management System)

Standard

Jacket water and SCAC thermostats

ANSI/DN customer flange connections for JW inlet and outlet

Electrical jacket water and aftercooler coolant pump

flange connections for JW inlet and outlet

Optional

CHP skid

Standard

Exhaust waste gate for the CG170B-12

PEARL/Low resistence exhaust system

Closed crankcase ventilation system

Standard

Pre-chamber spark plugs

Electronic fuel metering valve

Independently controlled cylinder monitoring and ignition system

Standard

Reactive droop

closed-coupled generator result in no torque transmission to the base frame

Winding temperature detectors

Busbar connections

grid code generator

Anti-condensation space heater

3-phase sensing and KVAR/PF control

Standard

24V starting motors

Battery disconnect switch

Standard

Crankshaft vibration damper and guard

Optional

50Hz: Germany, Belgium, Great Britain, Italy, Poland, and Netherlands
