XQ570 Tier 4 Final – 455 ekW (568 kVA)

Rating Prime455 ekW (568 kVA)

Frequency60 Hz

Voltage120 - 600 V

Rating Standby500 ekW (625 kVA)

EngineCat C18

FuelDiesel

Height - Without Trailer102in

Length - Without Trailer240in

Width - Without Trailer96in

Weight with Lube Oil and Coolant, Without Trailer24125lb

100% Load 60Hz33.2gal/hr

75% Load 60Hz26.2gal/hr

50% Load 60Hz19gal/hr

100% Load 60Hz35.9gal/hr

75% Load 60Hz28.3gal/hr

50% Load 60Hz20.5gal/hr

Sound Power @ 7 meters (23 feet) @ All Ratings74 dB(A)

Standard

Heavy-duty.
Turbocharged.
After treatment

Standard

LC6134G Frame

Standard

Digital EMCP4.4 set mounted controller

Standard

Provides package monitoring and management

Standard

Package mounted radiator with vertical air discharge.
Filled from factory

Standard

12V heavy duty starting motor and charging alternator c/w battery isolator

Standard

24 hour dual wall fuel tank with 3 way directional valve for external supply

Standard

Cyclonic/paper with dust cup and service indicator

Standard

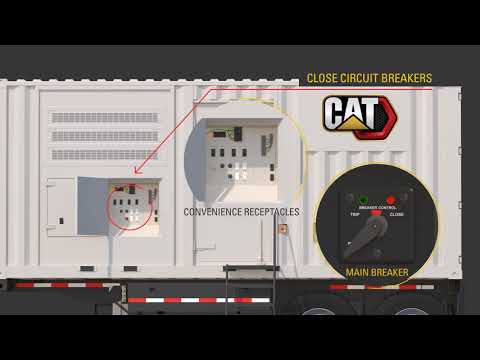

Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Standard

Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation

Standard

Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Standard

Integrated spark arresting silencer

Standard

On engine primary and secondary oil filters. Filled from factory

Standard

Factory tested and inspected
