GH800B Automated Plow System

GH800B Automated Plow System

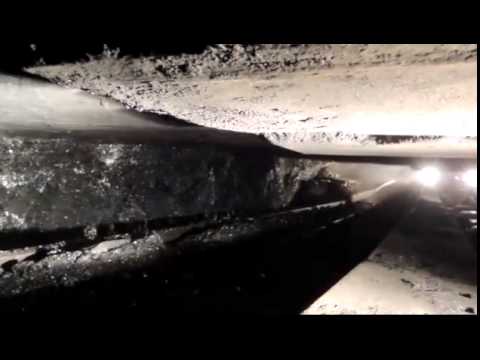

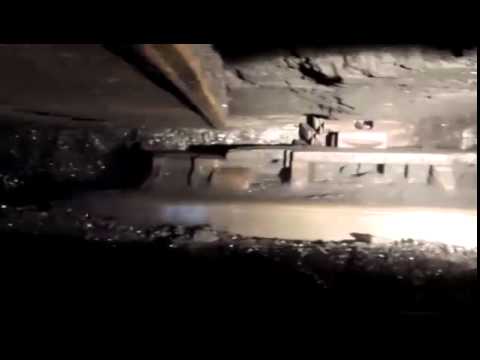

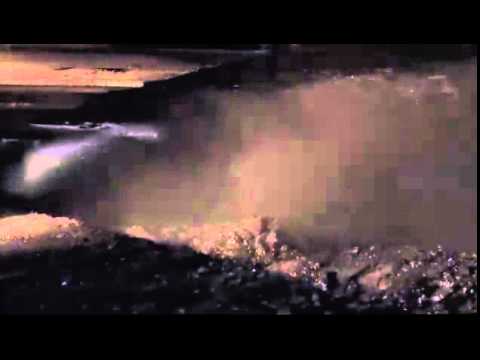

The Cat® GH800 Plow System, previously known as the GH 9-38 ve system, has been the standard plow of choice since the early 1990s and is used in seams from approximately 0.9 m (35 in) up to 2.0 m (79 in), regardless of the inclination of the seam or the hardness of the coal. Caterpillar modified this already-successful plow model to create the new technologically advanced GH800B plow, with improved design features enhancing productivity in minimum seam heights below 1.0 m (39 in). The plow body of this next-generation machine has an optimized design that allows it to load more coal onto the face conveyor and reduces the amount of cutting power wasted in the process. The GH800B plow system with 2 × 400 kW (2 × 536 hp) installed power now covers mining heights from 750 to 1550 mm (30 to 61 in).

Request a Quote

Coal HardnessSoft-hard Coal

Maximum Installed Power2 × 400 kW (2 × 536 hp)

Maximum Cutting Depth0.67ft

Maximum Seam Inclination60°

Plow Heights - With Gobside Support - Height 21685-1965 mm (5.53-6.45 ft)

Mechanical Height Adjustment180-280 mm (0.59-0.92 ft)

Maximum Plow Speed600ft/min

Plow Heights - Height 31270-1550 mm (4.17-5.09 ft)

Plow Heights - Height 1750-1030 mm (2.64-3.38 ft)

Weight - Single Plow4385-5625 kg (10,660-12,401 lb)

Cutting Depth0.67ft

Maximum Drive Power2 × 400 kW (2 × 536 hp)

Bottom Bit Positions - Position 1+19 mm (+0.06 ft)

Bottom Bit Positions - Position 3–22 mm (–0.07 ft)

Plow Length8.65ft

Bottom Bit Positions - Position 4–39 mm (–0.13 ft)

Bottom Bit Positions - Position 2–9 mm (–0.03 ft)

Coal HardnessSoft-hard coal

Plow Heights - Height 21000-1285 mm (3.28-4.22 ft)

Plow Heights - With Gobside Support - Height 11535-1700 mm (5.04-5.58 ft)

Maximum Installed Power2 × 400 kW (2 × 536 hp)

Maximum Plow Speed600ft/min

Seam Range0.8 m-2.0 m (31.5 in-79 in)

Type of CoalSoft-hard Coal
